KLOR Series High-Efficiency Oil Removal Integrated Equipment

KLOR series integrated oil removal equipment

The KLOR series integrated oil removal and dismantling device is based on the independently developed ORZ deep oil removal technology. It is the first domestic deep adsorption and oil removal and dismantling device designed for customers with small project sites that cannot be constructed by civil engineering. It includes two parts: adsorption and solvent recovery blocks, equipped with a fully automated control system, AI module control, simple operation, and unmanned operation. Suitable for deep oil removal requirements of extraction system feed liquids or oily wastewater such as P204, P507, C272, BC196, etc., with a treated effluent oil content of ≤ 1mg/L.
Widely used in industries such as non-ferrous metallurgy, power battery materials, nickel cobalt, rare earths, vanadium titanium, petroleum, and chemical engineering.
Scope of application: All feed liquids or oily wastewater with inlet oil content ≤ 150mg/L.

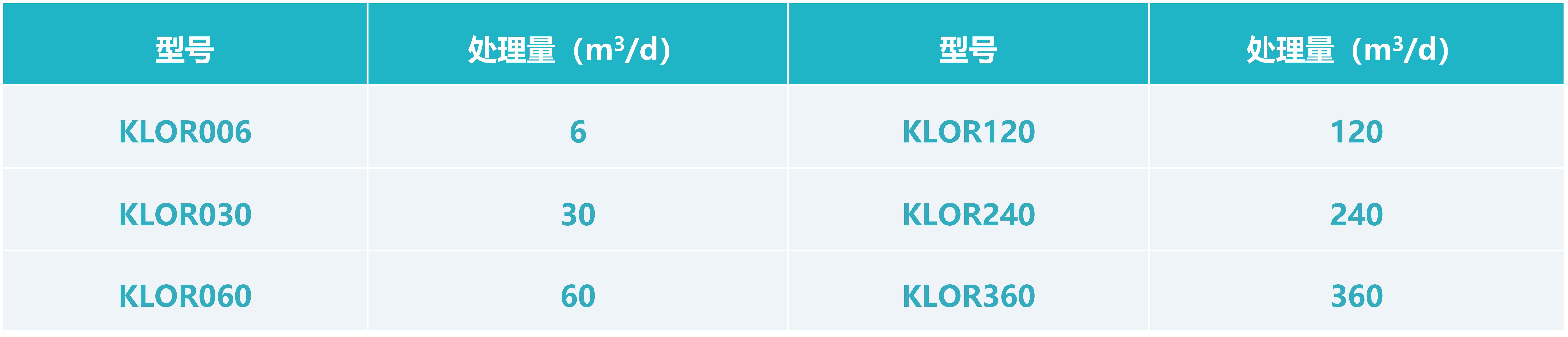

Device model

Device advantages and progressiveness

Modular design, compact device, small footprint, convenient transportation and assembly
Full process automation control, simple operation, and the ability to achieve unmanned operation
Price regulation and transparency, controllable investment
Good oil removal effect, effluent oil content ≤ 1 mg/L, no solid waste pollution
The on-site installation workload is small, the operation cycle is short, and engineering resources are saved
Modular assembly can solve problems such as increased processing capacity or limited space

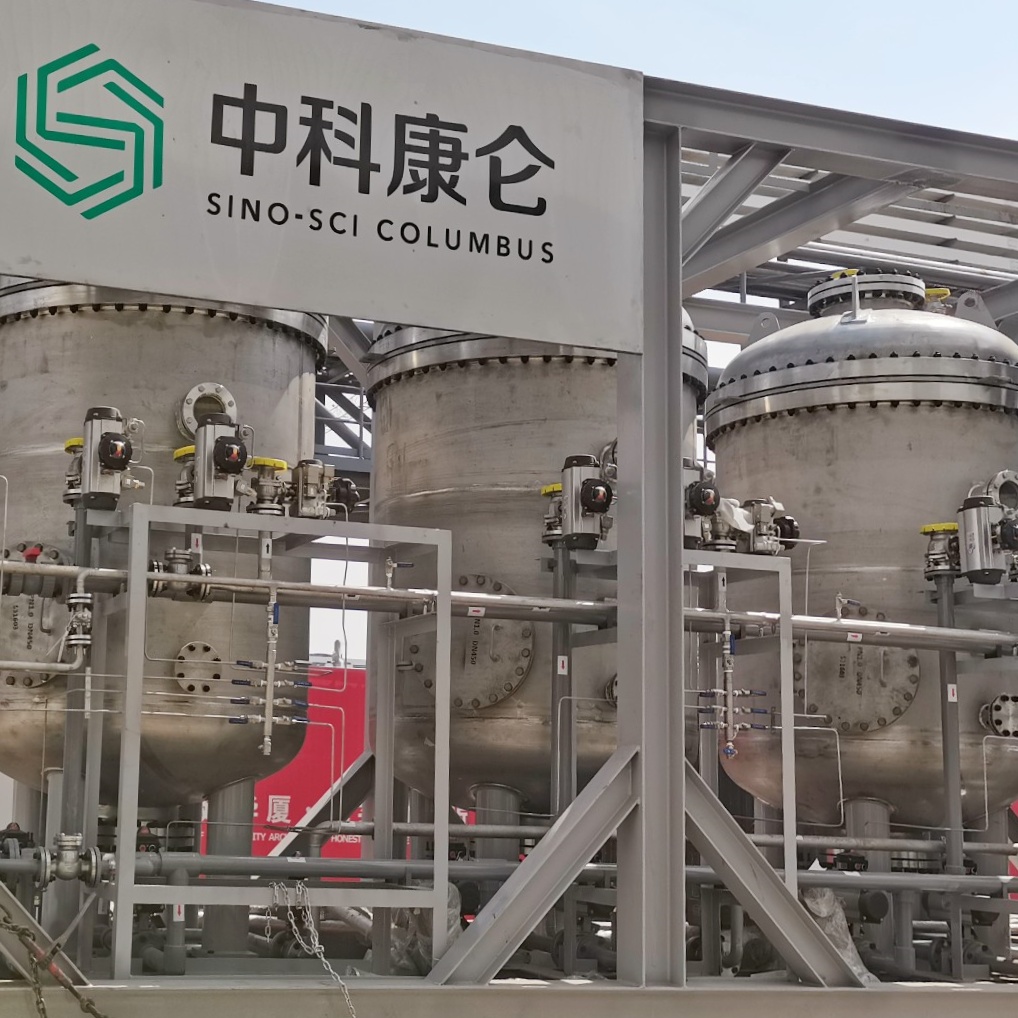

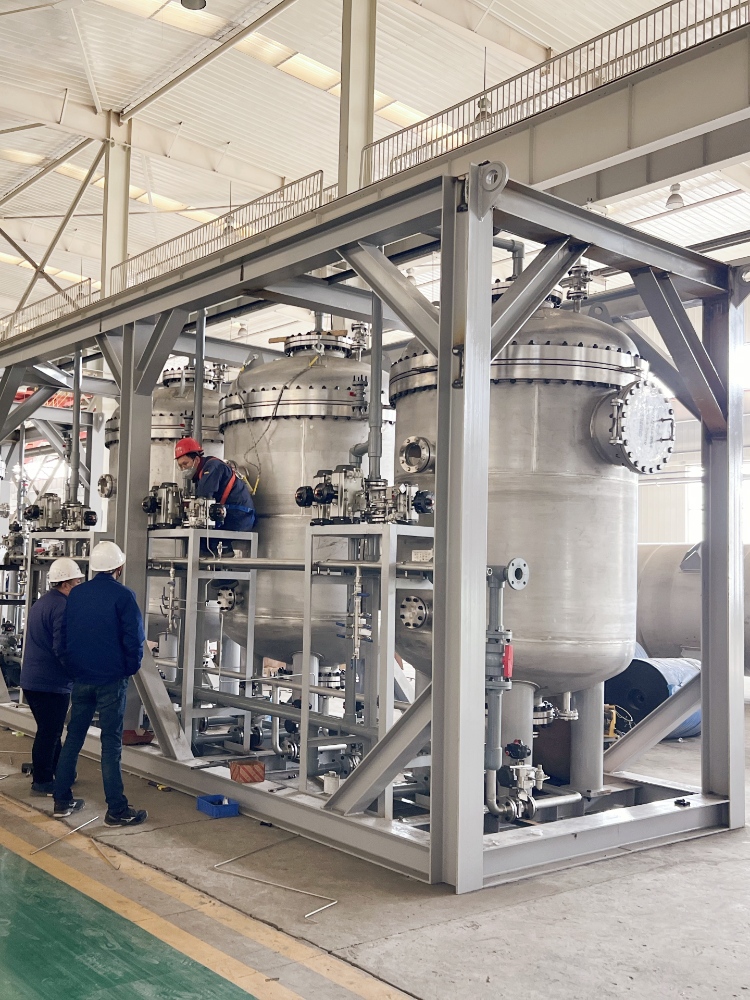

Field Device

Progressiveness process

Breaking through the technological bottleneck of traditional adsorption oil removal materials that are difficult to regenerate
The processed oil content is less than 1mg/L, and the evaporated product has high purity and quality
Zero loss - no adsorption of inorganic substances, no loss of raw materials and valuable metals
Zero pollution - realizing resource recycling of desorbents, water, oil, etc., without secondary pollution such as hazardous waste
Mature process route, stable operating effect, and long material service life

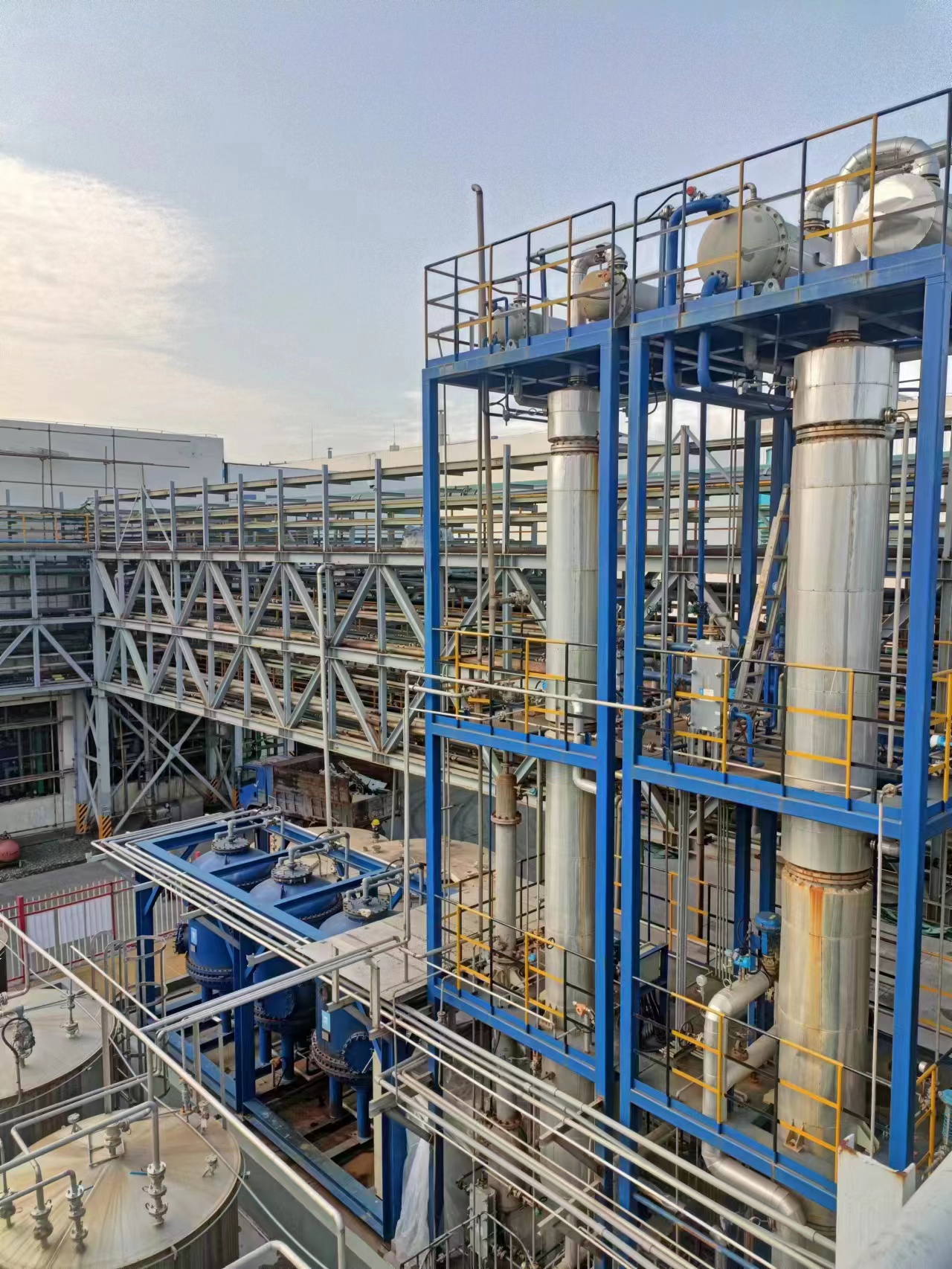

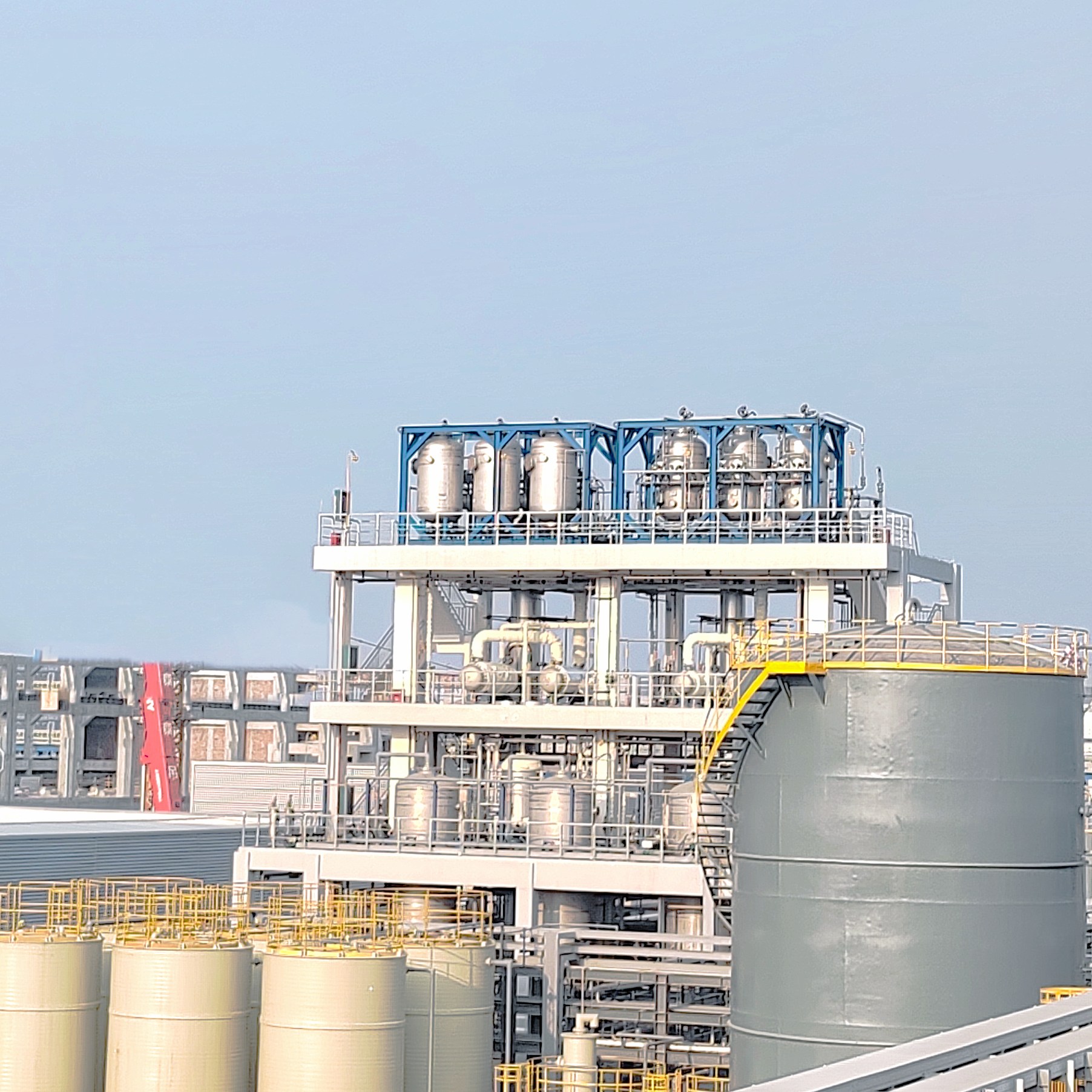

Excellent case

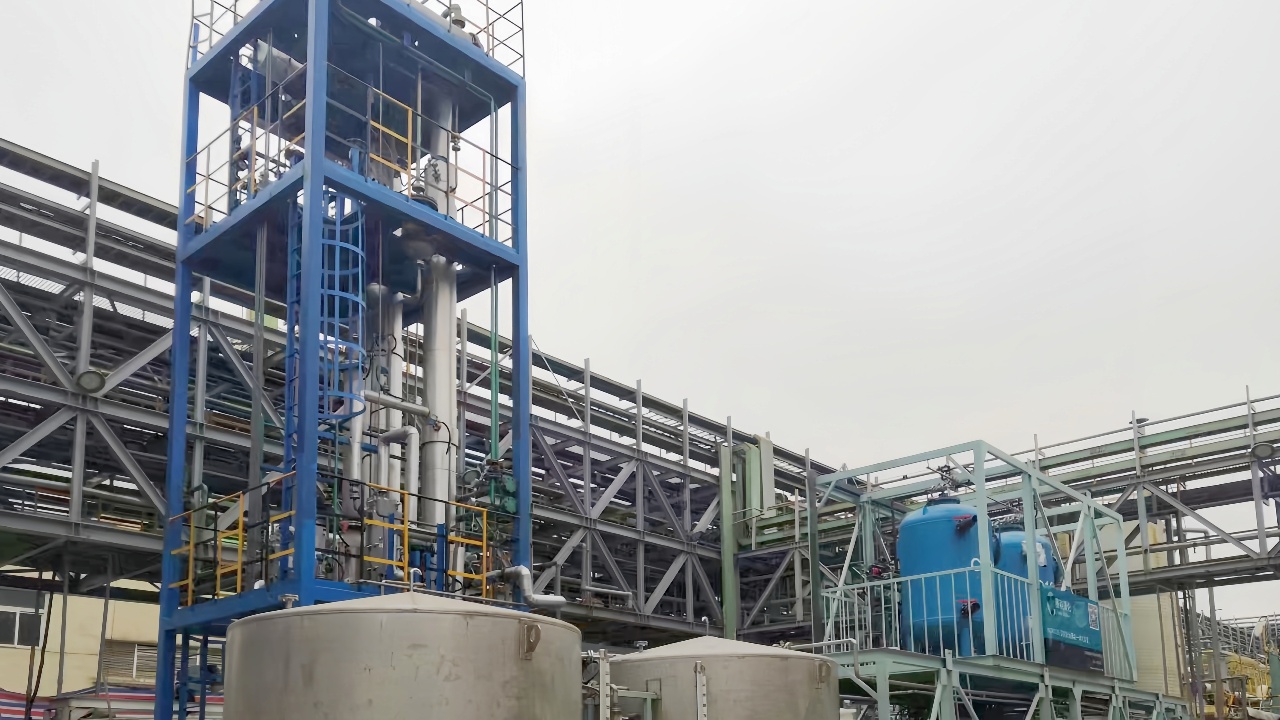

KLORO120 Oil Removal Skid Assembly Complete Equipment Project of Zhejiang New Materials Co., Ltd

The oil containing liquid in this project comes from the cobalt chloride back extraction liquid generated in the extraction section. The oil carried by it enters the evaporation system, causing problems such as salt deposition and foaming on the inner wall, seriously interfering with the stable operation of the system and significantly reducing product quality and purity. Adopting our company's KLORO120 complete set of oil removal pry equipment, including adsorption oil removal pry block and solvent recovery pry block, the system operates automatically and occupies an area of only square meters. The oil content in the treated liquid is less than 1mg/L. The water volume of the second phase project has increased by 240 tons/day. After on-site debugging, the effluent oil content meets the requirement of less than 1mg/L and remains stable for a long time.
